LX-UPC2-180F

Worldwide No.1 for Double Feeding Rollers System with Motors in Front

  • Super Terminal PC Software.
  • Thick – 500g.
  • Continuous Cut – 300 M.
  • Accuracy – 0.05 Mm.
  • Width – 1.8 M.

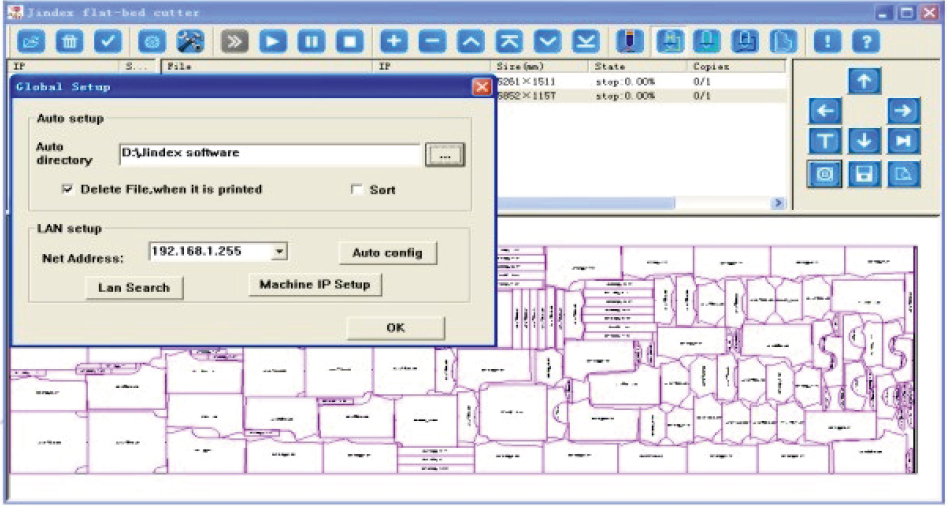

software

Advanced Cut/Plot centre server software

  • Auto-recognize the cut/draw lines in all kind of CAD
  • Realtime edit the cutting/plotting quantity & display the queue files status
  • Select & Define inner cut/ External Cut/ Half cut/
    draw lines into different other lines and the changes
    can be saved for future use by related colors

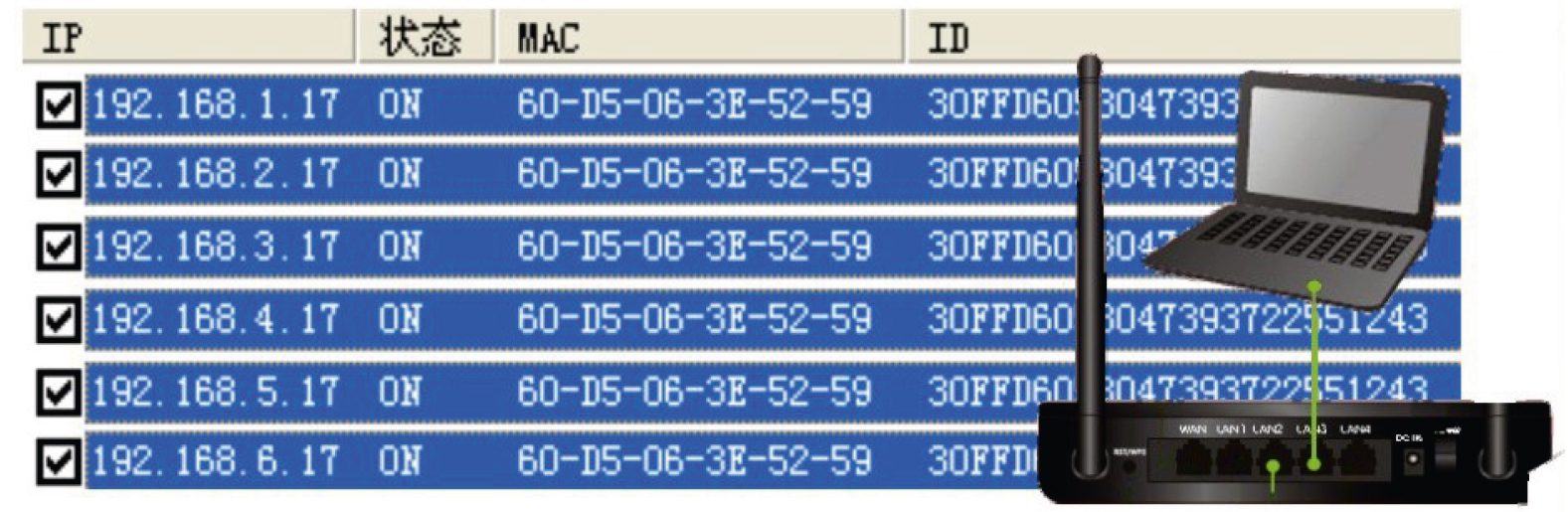

cutter-table
  • A computer can control more cutters by the router
  • Super terminal PC control software is unique in the world that preview, edit the queuing files in the server
  • The server Cut/Plot centre software can communicate realtime with terminal software without walking.
remote
  • Big LCD show cut & plot status,
    adjust the values of cut-press &
    test the ink.
  • Overlap test for cut & draw /
    Reset, Stop, Pause, Re-run /
    Move paper Front & back.
mother-board

Based on the military level
ARM9 chip developed cut main
board with full knowhow for
better quality

Reliable
  • Reliable HP45 operate easy
    and upgrade as 4 heads.
  • Double efficiency longer
    work-life.

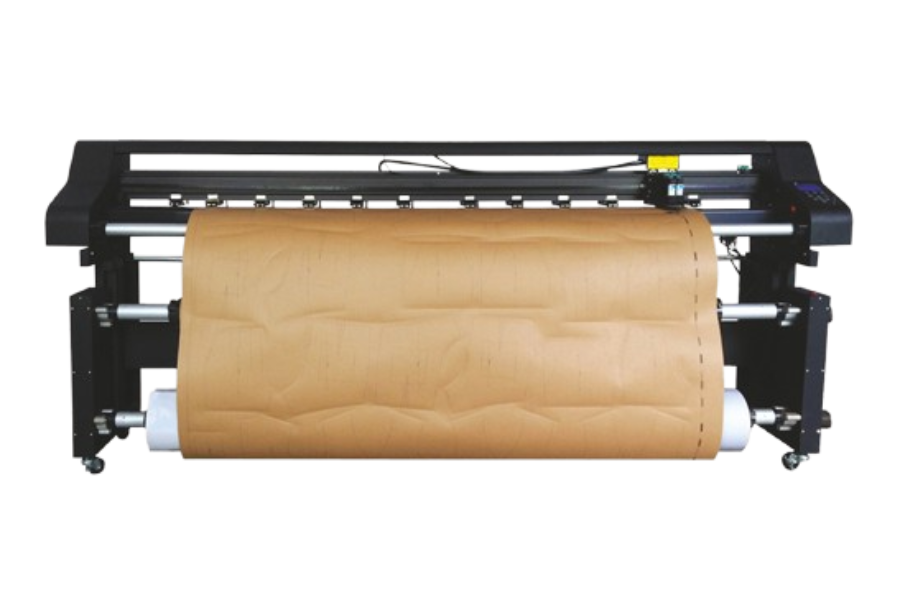

UPC Apparel Patterns 2-in-1 Inkjet Cutter Technical Specifications

Statement Summary
MODELS JD-UPC2-160 JD-UPC2-180 JD-UPC2-200 JD-UPC2-220
Max paper width 165 cm 185 cm 205 cm 225 cm
Max cut/plot width 160 cm 180 cm 200 cm 220 cm
Plotting Speed
With Resolution		 80 Sq M/Hr.
300 – 600 dpi		 80 Sq M/Hr.
300 -600 dpi		 90 – 100 Sq M/Hr.
(180SqM/Hr. as 4HP45)		 90 – 100 Sq M/Hr.
(180SqM/Hr.as 4HP45)
Max. Cut Speed by knife 900mm/s 900mm/s 900mm/s 900mm/s
Carriage Type HP45A/B, 300-600DPI without maintenance/s
Carriage number 2 HP45 Cartridges 2 HP45 Cartridges (Cut width smaller by 8 mm if by 4 HP)
Paper or materials types Can continuously cut / plot the roll paper or board paper from 80 gram to 500 gram of white paper or yellow paper boards
Cut or Draw length warranty Advanced and high-accuracy roller structure make continuous, accurate cut and plot 500 meters without joints
Feeding motor & 2nd
paper feeder		 Newly Auto-feeding Paper Motor can make plotting X/Y size 100% accurate in 50KG paper rolls;
2nd auto-feeding paper roller system can be selected as an option if two kind of paper to be used frequently
Mother board control
advantages		 With a most Integrated mother board, make bitmap plotting & vectorised cut lines more smart & stable with perfect program control to advanced Arm9 chip for two kinds of different movement ways
LCD Display Big LCD can dynamically show cut & plot status and position, adjust the cut-pressure values & test the ink-out. Can adjust the overlap test for cut & draw, move paper front & back, distance etc
Port/interface electricity
Power		 Super LAN Port as Interface
<300W; 110-260V AC: 47-66HZ: (Option:90-120V)
LAN & Multi-Plotter
plotting online		 Realize a computer to control 50 Inkjet Plotters to print at the same time by LAN. Each plotter can be setup and controlled easily in LAN
PC terminal software
advantages		 Super Terminal PC control software is dynamic adjusting software with the Server host database, it can preview, edit the queuing files orders realtime in the computer server
Server host software
advantages		 The Server Host control software is a main plotting and cutting control software for all the files of the LAN that has great function to edit the cut, half-cut, draw type’s lines and save
Control way & its advantages With newly innovative German accuracy, motor under closed loop control make Inkjet Cutting Plotter more smart and stable working, assure 100% maintenance free operation

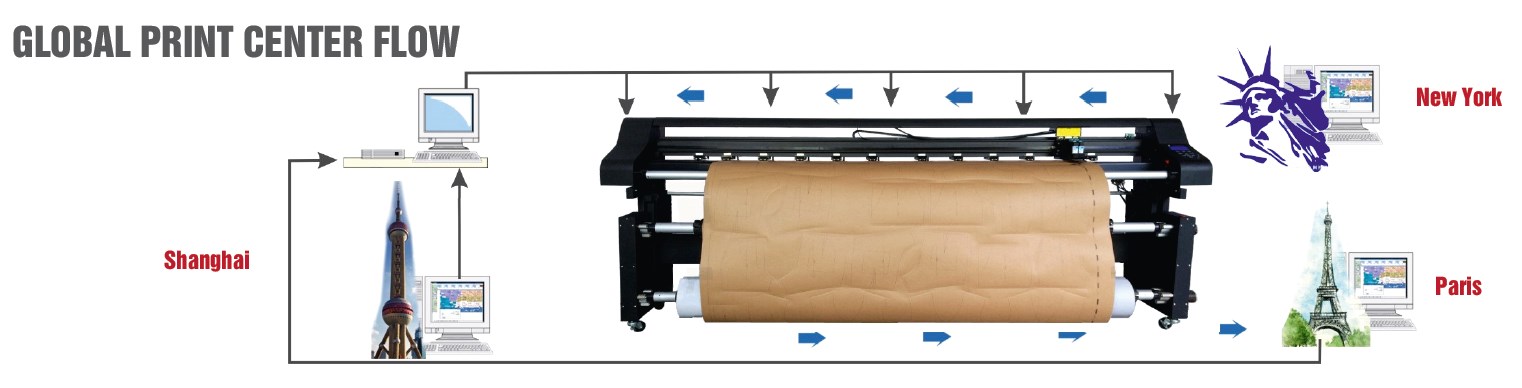

GLOBAL PRINT CENTER FLOW
