High Speed Belt Type Digital Textile Printer
A professional manufacturer integrating R&D, production, sales and training, specializing in producing automatic equipment for sewing industry thread cutting process.
LUNEX Brand thread trimming machines combine the thread trimming and suction functions. A trimming machine can save 2-8 thead trimming workers. It is great for the sewing industry to solve the probles to thead cutting process recruitment, thread cutting is not clean, damage the products, delivery date can not be guaranteed and so on.
Product Features
- Low breakage rate
- Longer life and more cost effective
- There is no need to replace the carbon brush frequently
- Two independent control system
- Self delivery function
- The knife set switch controls the start and stop of the suction motor
280m²/h
Production

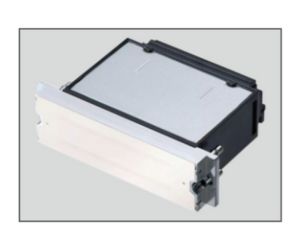

RICOH G6 Print Head

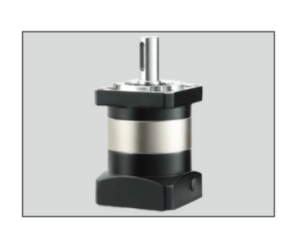

Auto up & down motor of carriage

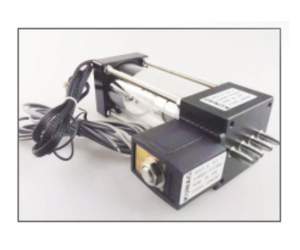

Large capacity two-level ink box
with electromagnetic valve

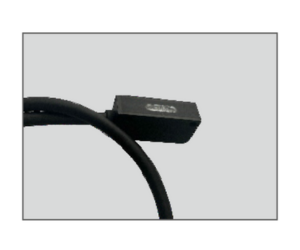

High-precision magnetic grid

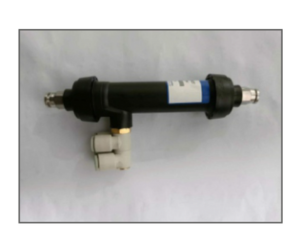

Degassing moudle

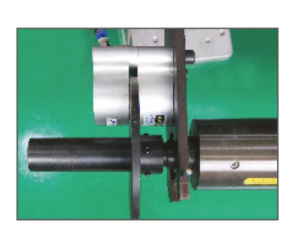

Penumatic disc brake
Technical Specifications
| MODEL | LX-1850G | |||
|---|---|---|---|---|
| Print Head | Ricoh G6 | |||
| Number of Print Heads | 4 | 8 | ||
| Nozzle Amount | 1280 Nozzles | |||
| Effective Print Width | 1800 mm | |||
| Color | 4 Colors | 8 Colors | 4 Colors | 8 Colors |
| SPEED | ||||
| 508×600 dpi 2 pass | 140m2h | 70m2h | 280m2h | 140m2h |
| 508*900 dpi 3 pass | 90m2h | 50m2h | 180m2h | 90m2h |
| Ink Type | Reactive, Disperse, Pigment, Acid Ink | |||
| Ink Supply Model | Auto Ink Supply of Peristaltic Pump | |||
| Drying Type | Suspended Drying | Independent Drying Unit | ||
| Maximum Drying Power | 5 KW | 20 KW | ||
| Unwinding Device | Inflatable Shaft | |||
| Winding Device | Inflatable Shaft Constant Tension Motor | |||
| Carriage Adjustable Height | 3 – 30 mm Adjustable | |||
| Print Head Height | 3 – 5 mm Adjustable | |||
| Print Medium | Fabric | |||
| Transfer Medium | Conveyor Belt | |||
| Transmission Model | USB 3.0 | |||
| File Format | TIFF / JPG / PDF / BMP | |||
| RIP Software | Neostampa | |||
