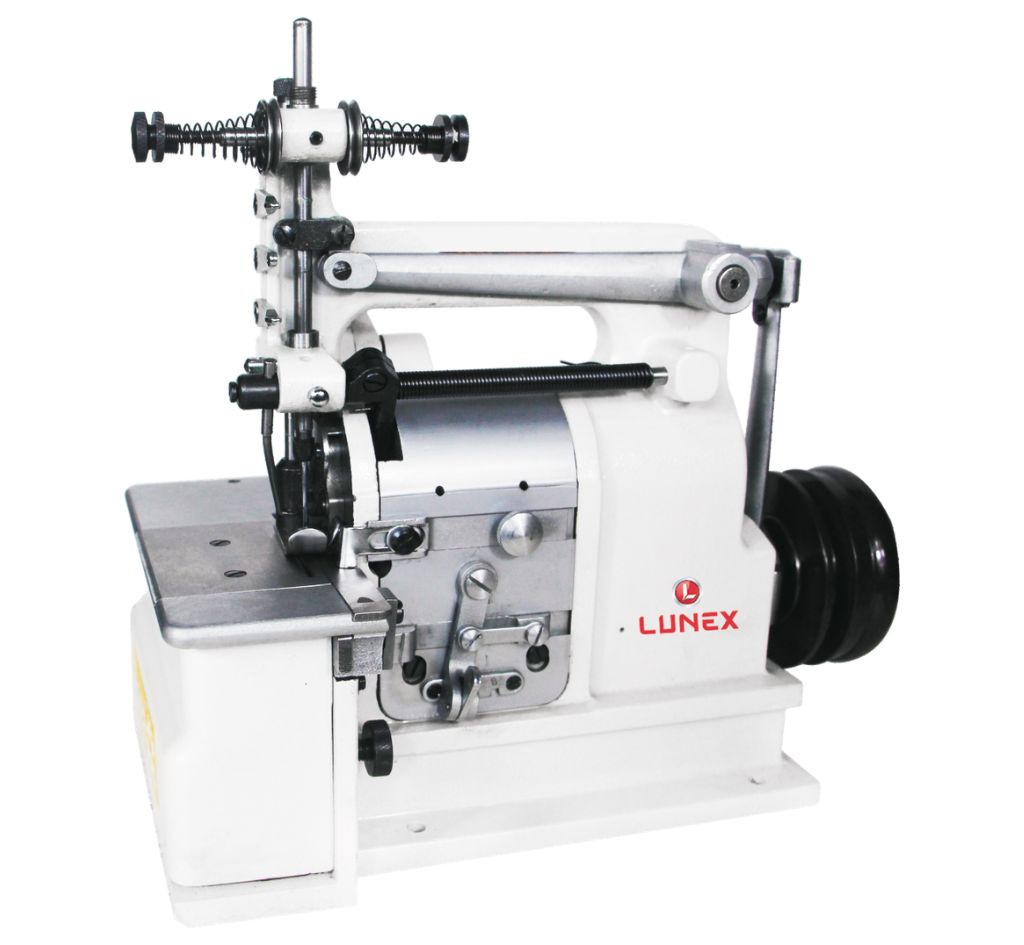

LX-38
LUNEX Shell Stitch Overlock Sewing Machines are specially designed and manufactured in various specific styles for producing shell edge finish of different sizes. It is regularly made in several styles for different stitch range of finish. The finish may be made very elastic or quite firm, and two threads of different colors, materials, or sizes, may be employed to produce a great range of effects.
Large Shell Stitch Overlock Sewing Machine
Designed for producing shell edge finish of larger size with high precision and consistency.
Ideal for:
- Blankets
- Fleece garments
- Lightweight sweaters
- Infant’s wear
- Ladies’ gold socks
- Curtains

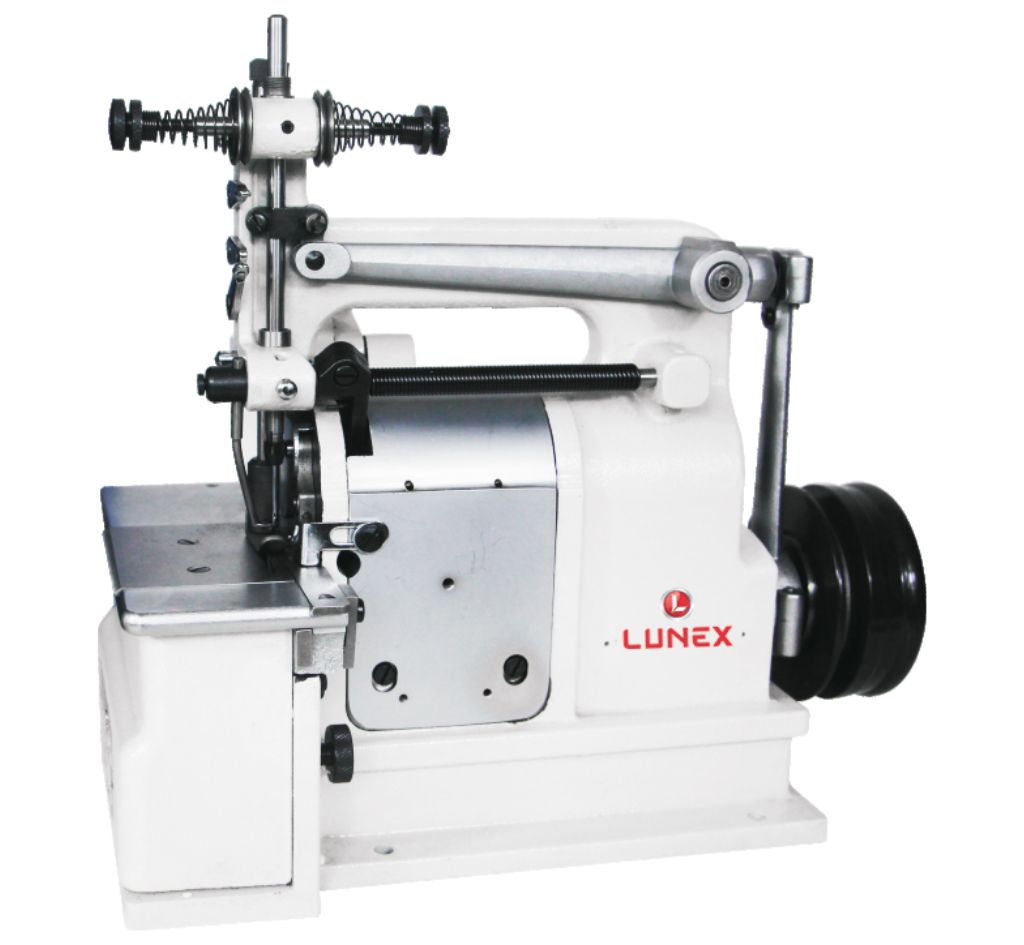

LX-17
Small Shell Stitch Overlock Sewing Machine

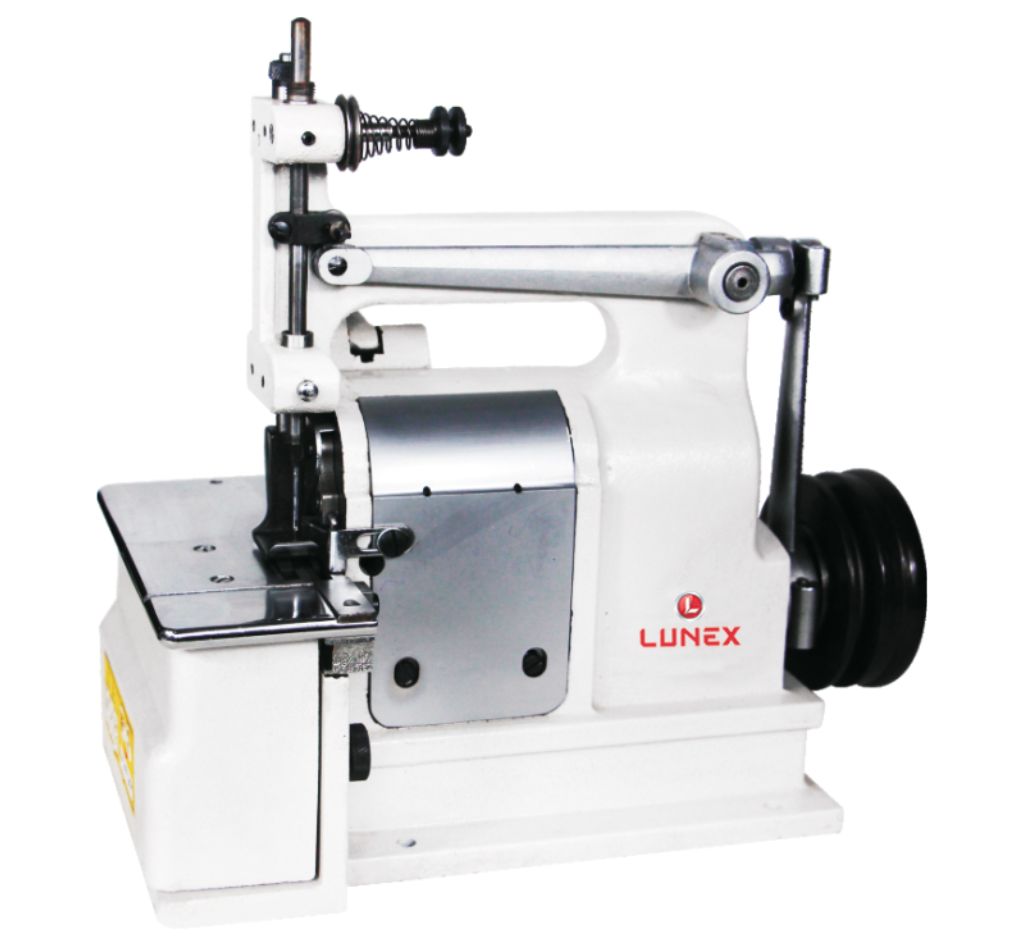

LX-18
Medium Shell Stitch Overlock Sewing Machine

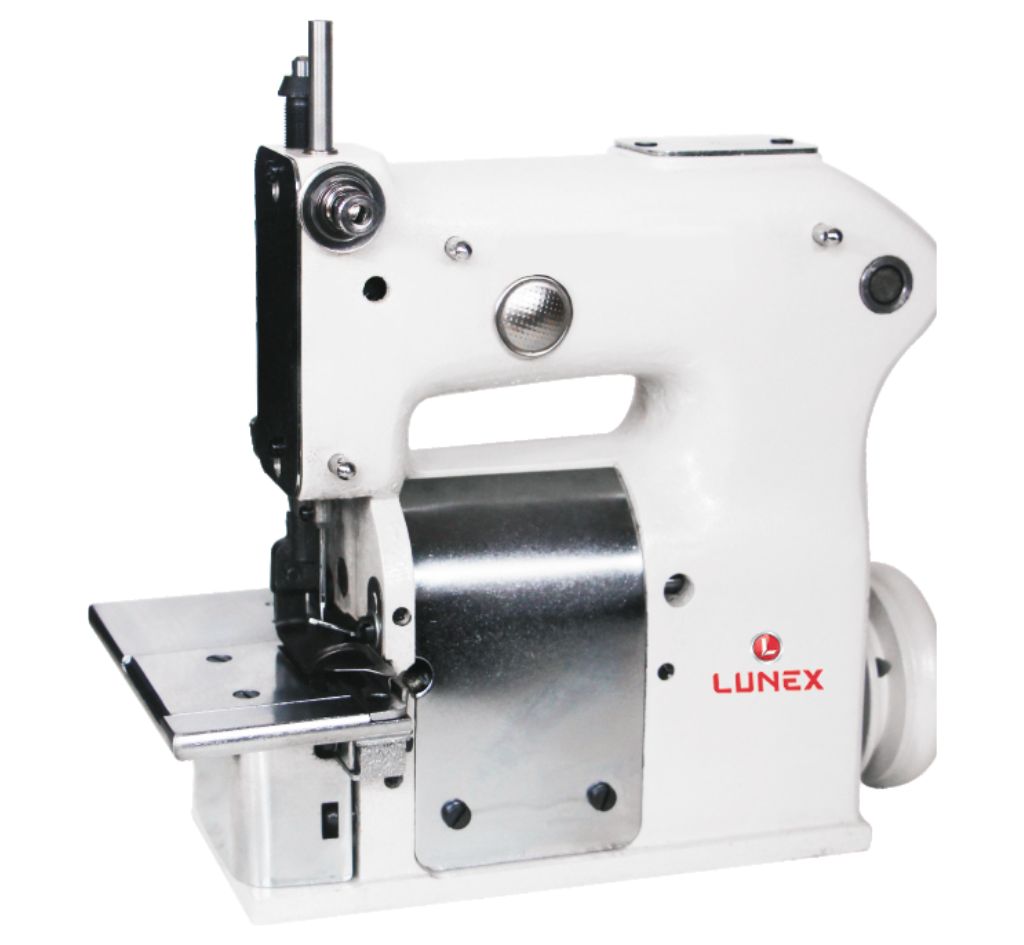

LX-1-2
Woolen Blanket Overlock Sewing Machine
It is applicable to the selvage of cotton blanket, blanket, children’s blanket, hat, Scarf, gloves and other products
Technical Specifications
Model | Speed | Stitch | Needle | Overedging Width | N.W. | G.W. |
|---|---|---|---|---|---|---|
LX-17 | 1200~1700r.p.m. | 5–12mm | DBX1 #19–21 | 6mm | 17kg | 20kg |
LX-18 | 1200~1700r.p.m. | 2.5–10mm | DPX5 #18 DBX1 #19–22 | 10–12mm | 17kg | 20kg |
LX-38 | 1200~1700r.p.m. | 10–20mm | DPX5 #18 DBX1 #19–24 | 10–12mm | 17kg | 20kg |
LX-27 | 1200~1700r.p.m. | 0.6–15mm | DPX5 #18 DBX1 #19–24 | 7–9mm | 17kg | 20kg |
Model | Thread | Speed | Needle | Presser Foot Height | Max. Sewing Thickness | N.W./G.W. |
|---|---|---|---|---|---|---|
LX-1-2 | 1 | 1000 RPM | 1cm | 7mm | 9mm | 12/20kg |
LUNEX machines are engineered for precision, durability, and consistent shell stitch performance.
Designed to meet the demands of modern textile production with reliable and efficient operation.
