Digitizer

MAIN FEATURES

  • Upper belt wrapping prevention system adopts direct limit switch type like lower belt wrapping prevention system.
  • Adopted rubber driving roller for non-stop driving.
  • The innovation body design reduction the hat to the electrical part’s influence, enhance the electrical parts durability and the life.
  • MS Equipped with rotary strip-off device.

Gerber/Lectra System

A2 Small Size

MODEL LX-4460C LX36-48C LX2436C LX1824C LX6080EC; LX7080EC
LX80100EC; LX80120EC
Area 44X60(400) 36X48(40) 24X36(A1) 18X24(A2) Customized Area: 60X80inches,
70x80inches, 80x100inches,
80x120inches etc.

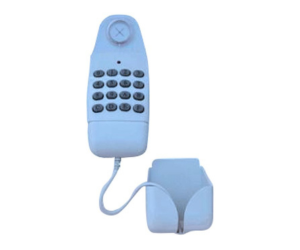

Scaler 16-button Mouse/16
Resolution 1-2540LPI
Precision 0.254mm(0.01inch)
PC Interface RS232, USB
Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200
Export Rate 1-250 pair/second
Date Format More than 30 kinds of internationel standard industrial formets including 20 kinds of
ASCII formats and 11 kinds of Binary formats
Work Mode Request or Prompt, Point, Stream or Run, Une, Track or Switch, Increment, Mouse,
Delta and Grid update, Halt
Party Bits None, Even, Odd
Data Bits 7, 8
Stop Bits 1, 2

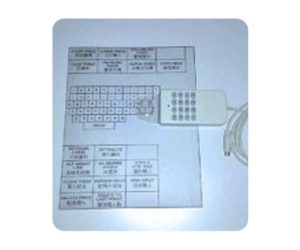

Software Interface Commends communication or Menu setting(can save more than 20 lands of
configuration for CAD)
Compatibility Most CAD software such as AutoCAD, Gerber, Lectra, AGHS
Max. Induction Height for Mouse 15mm
Voltage to Power Adapter AC220V/50HZAC110V/60HZ is optional)
Voltage from Power Adapter AC 12V

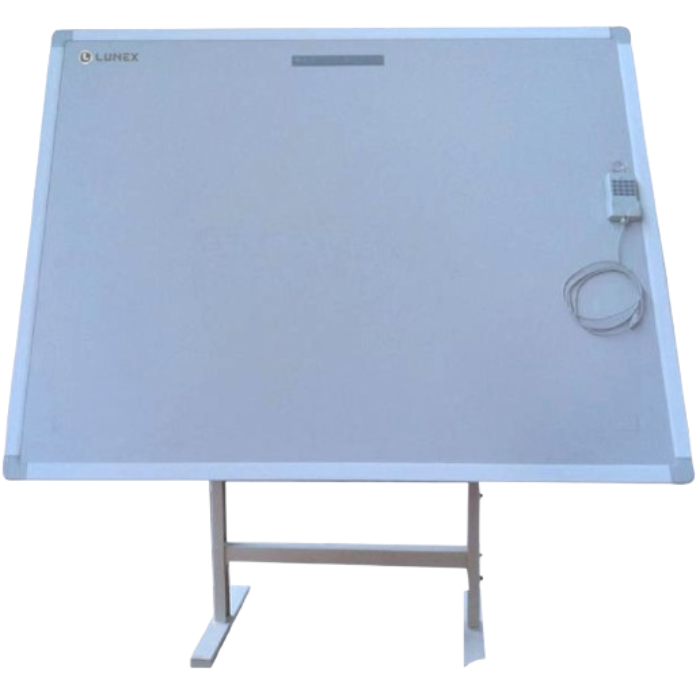

Stand Adjusttale for Operation angle
Accessories Mouse holder/2
Customized Customized Available
