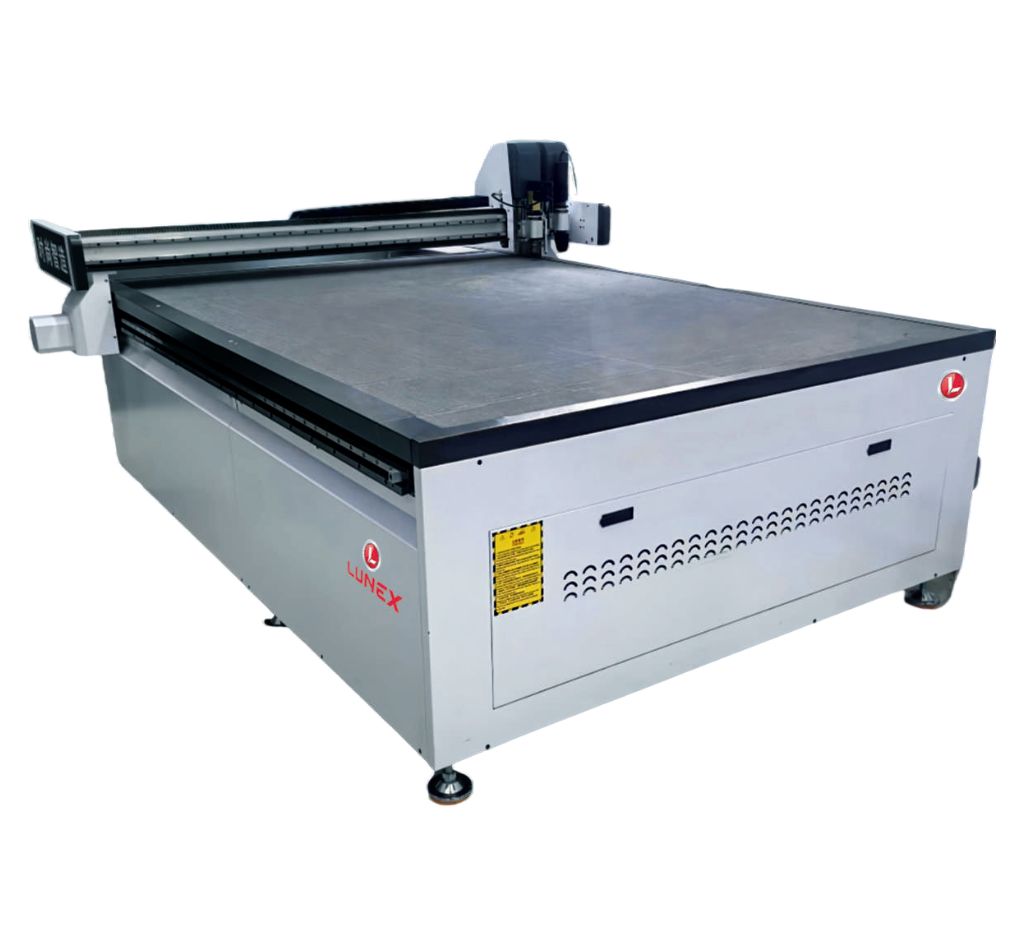

Intelligent Cutting Machine - LX-1620
High-speed intelligent cutting solution designed for Garments, Fabrics, Leather and other Flexible Materials.
The LUNEX Intelligent Cutting Machine is designed for precision cutting across various flexible materials used in modern textile production.
Advantages
- High precision cutting with stable performance
- Smooth material feeding for accurate cutting results
- Reliable industrial structure for long-term operation
- Easy operation through intelligent touch screen control
- Suitable for both sample production and small batch manufacturing
Key Advantages
High Precision Cutting
Advanced cutting system ensures ±0.1mm accuracy for consistent results.
High Speed Operation
Maximum cutting speed up to 1500mm/s for efficient production.
Intelligent Control
Embedded operating system with touch screen operation for easy control.
Stable Industrial Structure
Equipped with linear guide rail, rack transmission and servo motor for reliable performance.
| Specification | Details | |
|---|---|---|
| Model | LX1620 Fixed Table Type (Standard) | |
| Product Sizes | LX1620, LX1625, LX1630, LX1820, LX1825, LX1830, LX2020, LX2025, LX2030 | |
| Control System | Embedded operating system with touch screen operation | |
| Cutting Area | Length 2.0M × Width 1.6M platform type | |
| Machine Dimensions | Length 2.5M × Width 2.2M × Height 0.8M | |
| Cutting Materials | Garments, Fabrics, Leather and Other Flexible Materials | |
| Maximum Cutting Speed | 1500mm/s | |
| Cutting Thickness | 0.5cm | |
| Cutting Tools | Round knife, vibrating knife | |
| Material Fixing Method | Vacuum adsorption | |
| Transmission Interface | Network port, USB port, supports offline operation | |
| Transmission System | Linear guide rail, rack, servo motor | |
| Supported Software Formats | PLT, CUT, DXF etc. | |
| Cutting Accuracy | ±0.1mm (depending on material) | |
| Working Voltage | Voltage: 220V | Power consumption during cutting: 5 KW | |
| Machine Net Weight | Approx. 1000kg | |
