LX-630A
Single Head Needle Detector
Main Features
- Cycled, 9 pairs of sensor, excellent antidisturbance performance.

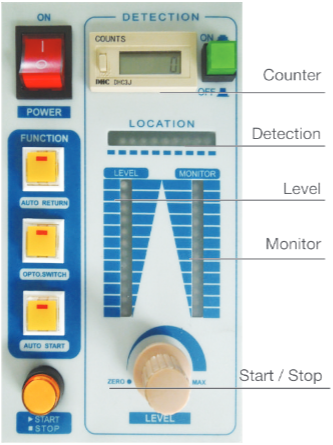

- Based on LED bar displayed control panel.
- High accuracy detection locating technology, LED indication.
- Level setup indication and real-time sensitivity display.
- Optional conveying mode after alarm.
- Optional automatically restart.
- Reliability mechanical frame design, high stable during detection.
- Designed for universal AC power supply, switch power supply.
TECHNICAL SPECIFICATIONS
MODEL |
LX-360A |
|---|---|
Detection Method |
Magnetic Induction |
Detection Sensitivity |
0.8mm Steel to Small Scissors |
Detection Adjustment |
10 Steps |
Detection Width |
600mm |
Alarm Method |
Buzzer, LED and Belt stop |
Belt Speed |
32m/min(50Hz), 40m/min(60Hz) |
Power Source |
AC200-240V 50-60Hz |
Rated Output |
Approx. 140W |
Dimension (L*W*H) |
1650mm x 1050mm x 900mm |
Weight |
Approx. 220Kg |
SENSITIVITY
HEIGHT |
DETECTION SENSIBILITY |
REMARK |
|---|---|---|
100mm |
0.8mm steel to small scissors |
Standard Type |
120mm |
1.0mm steel to small scissors |
Option at Factory |
150mm |
1.2-1.5mm steel to small scissors |
Option at Factory |
200mm |
1.5-2.0mm steel to small scissors |
Option at Factory |
300mm |
2.5-3.0mm steel to small scissors |
Option at Factory |
