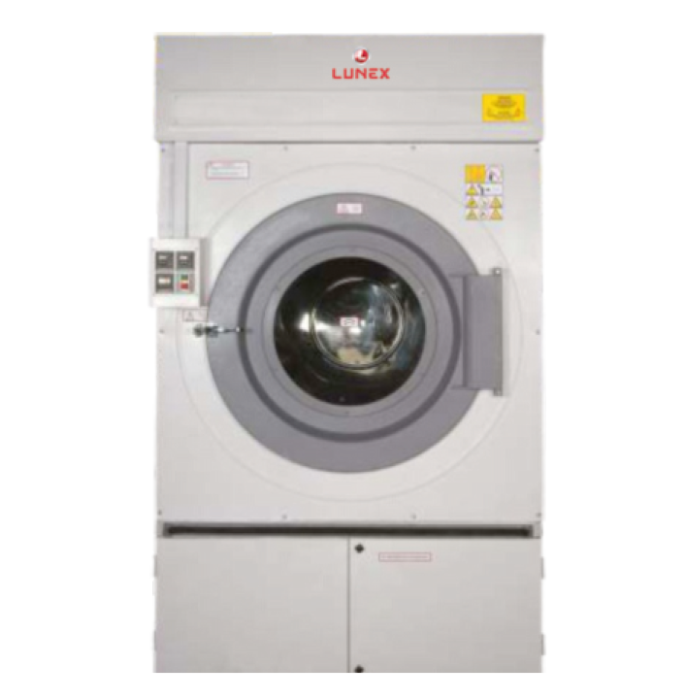

Industrial Drying Tumblers
-
-
- Fully automatic steam boiler
- Electric Consumption – 500 watts running
- Built with seamless shell & Seamless tube technology
- Low Fuel Consumption (1.0 – 6.0lt/hr)
- Modern Design to install in the finishing hall without heating effect
- Works on principle of reverse flame technology where flame & gases reverse in air tight chamber & in the process result in complete combustion & absolute utilization of energy with output efficiency of 90%
-
| Model | Capacity Dry weight |
Cylinder Size Volume |
Drive Blower Motoer |
Loading Door Opening | Exhaust Duct Size |
Steam Con./Comp |
Electric Load |
Heating Thermic Fluid Con./Comp |
Diesel Conn. Consump. |
Gas Conn. Consump. |
Dimensions W x D x H |
Net Wt/ Size: WxDxH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LX-XSS/E/D 15 LX-XST/L/G 15 |
15 Kg |
Ø 800 x 600 301 Ltrs |
0.37 KW 0.37 KW |
Ø 500 | 180 x 180 | DRS 15 Ø15 (0.5″ BSP) 15 Kg / hr |
DRE 15 9 / 13.5 KW |
DRT 15 Ø15(0.5″ BSP) 8000 Kcal / hr |
DRD 15 Ø6(0.25″ BSP) 1.8 Ltrs / hr |
DRG15/DRL15 Ø6(0.25″ BSP) 1kg / hr |
900 x 1200 x 1780 | 140 Kg / 490 Kg 1200 x 1500 x 2080 |
| LX-XSS/E/D 30 LX-XST/L/G 30 |
30 Kg |
Ø 950 x 850 602 Ltrs |
0.75 KW 0.75 KW |
Ø 650 | 210 x 210 | DRS 30 Ø15 (0.5″ BSP) 30 Kg / hr |
DRE 30 18 / 24 KW |
DRT 30 Ø15(0.5″ BSP) 16000 Kcal / hr |
DRD 30 Ø6(0.25″ BSP) 2.5 Ltrs / hr |
DRG30/DRL30 Ø6(0.25″ BSP) 2kg / hr |
1050 x 1500 x 1980 | 570 Kg / 690 Kg 1350 x 1800 x 2280 |
| LX-XSS/E/D 60 LX-XST/L/G 60 |
60 Kg |
Ø 1280 x 950 1221 Ltrs |
1.5 KW 1.5 KW |
Ø 800 | 300 x 300 | DRS 60 Ø15 (0.5″ BSP) 60 Kg / hr |
DRE 60 36 / 48 KW |
DRT 60 Ø20 (0.75″ BSP) 32000 Kcal / hr |
DRD 60 Ø15 (0.5″BSP) 4 Ltrs / hr |
DRG 60/DRL 60 Ø15 (0.5″BSP) 4 Kg / hr |
1380 x 1700 x 2340 | 924 Kg / 1090 Kg 1680 x 2000 x 2640 |
| LX-XSS/E/D 120 LX-XST/L/G 120 |
120 Kg |
Ø 1600 x 1200 2411 Ltrs |
2.25 KW 1.5 Kw |
Ø 1000 | 300 x 300 2 Nos |
DRS 120 Ø25 (1″ BPS) 120 Kg / hr |
– | DRT 120 Ø25 (1″ BSP) 64000 Kcal / hr |
DRD 120 Ø15 (0.5″BSP) 7.5 Ltrs / hr |
DRG 120 Ø15 (0.5″BSP) 8 kg / hr |
1760 x 2100 x 2900 | 1720 Kg / 1950 Kg 2060 x 2400 x 3200 |
