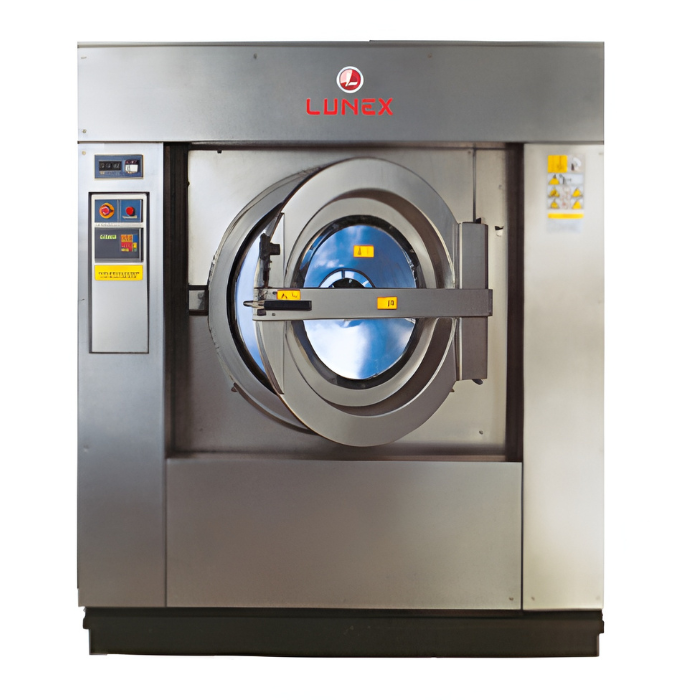

Washer Ext - Computer Controlled, S. S. Cabinet
We offer a range of industrial washer extractor, that is a combination of washing machine and hydro extractor and is widely used in standard as well as high level shop oors. Designed using latest techniques, these machines also help in saving loading and unloading time for both the conventional washing and hydro extractor machines.
Our range is manufactured using graded components and is appreciated for its sturdiness, corrosion resistance and better durability standards.
FEATURES OF INDUSTRIAL WASHER EXTRACTOR
Heavy duty bearing housing Two extra wide roller bearings that are permanently lubricated for trouble free operation In addition, two high quality seals provide four times the sealing power to isolate the bearings from water and chemicals.
Tuned suspension Tuned suspension systems that absorbs even severe out of balance load vibrations. Strategically placed center of gravity and mass weight placement aid in controlling movement and results in 90% reduction of force transferred to floor.
Auto chemical dispenser A five compartment dispenser is mounted at the side of the machine at a convenient height and flushes automatically through powerful jets as and when supply signaled by the computer.
Technical Specifications
| MODEL | CAPACITY dry weight per charge (1:10) |
CYLINDER SIZE VOLUME |
DRIVE MOTOR | CYLINDER SPEEDS | LOADING DOOR OPENING |
WATER CONNECTION CONSUMPTION |
DRAIN | HEATING | DIMENSIONS W x D x H |
NET WT/ SIZE: W x D x H |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WASH |
FINAL EXTRACT G FORCE |
STEAM CONN. STEAM CONSUMP. |
ELECTRIC LOAD | |||||||||
| LX-WES 15 LX-XSE 15 |
15 Kg |
Ø 720 x 380 154 Ltrs |
1.5 KW | 45 to 55 RPM |
870 to 940 RPM 304 to 355 G |
Ø 400 |
Ø20 (0.75″ BSP) 200 Ltrs/cycle |
Ø 65 | AXS 15 Ø15 (0.5″ BSP) 15 Kg / hr |
AXE15 12 KW |
1050 x 1060 x 1500 | 790 Kg/880 Kg 1350 x 1360 x 1800 |
| LX-XSS 30 LX-XSE 30 |
30 Kg |
Ø 900 x 500 318 Ltrs |
3.75 KW | 40 to 50 RPM |
780 to 840 RPM 305 to 354 G |
Ø 500 |
Ø25 (1″ BSP) 400 Ltrs/cycle |
Ø 65 | AXS 30 Ø15 (0.5″ BSP) 30 Kg / hr |
AXE 30 12-18 KW |
1300 x 1400 x 1725 | 1380 Kg/1560 Kg 1600 x 1700 x 2025 |
| LX-XSS 60 LX-XSE 60 |
60 Kg |
Ø 1100 x 650 617 Ltrs |
7.5 KW | 35 to 45 RPM |
700 to 760 RPM 301 to 355 G |
Ø 650 |
Ø38 (1.5″ BSP) 800 Ltrs/cycle |
Ø 65 | AXS 60 Ø15 (0.5″ BSP) 60 Kg / hr |
AXE 60 24-36 KW |
1600 x 1700 x 2025 | 2380 Kg1560 Kg 1900 x 2000 x 2350 |
| LX-XSS 120 | 120 Kg |
Ø 1350 x 850 1216 Ltrs |
15 KW Tilt Motor 1.5 KW |
30 to 35 RPM |
635 to 685 RPM 304 to 353 G |
Ø 800 |
Ø50 (2″ BSP) 1600 Ltrs/cycle |
Ø 65 2Nos |
AXS 120T Ø25 (1″ BSP) 120 Kg / hr |
– | 1950 x 2050 x 2300 | 4250 Kg/4670 Kg 2250 x 2350 x 2600 |
