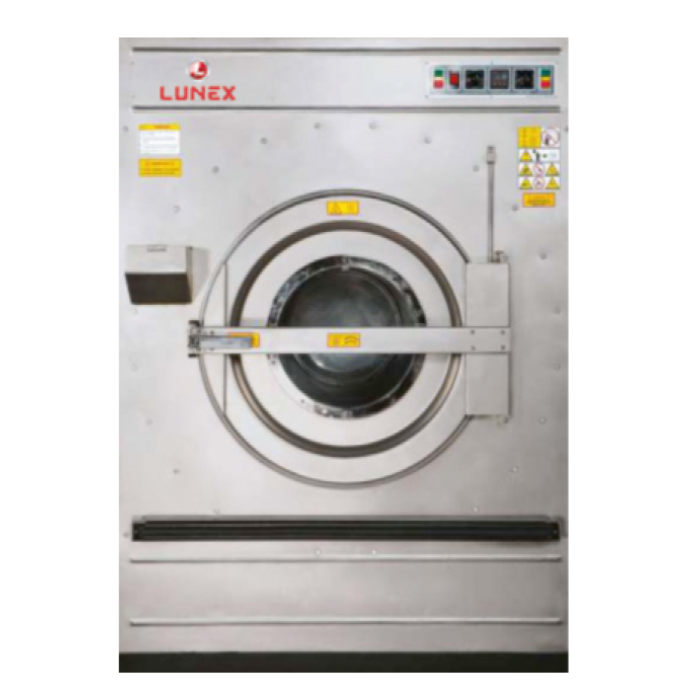

Industrial Washing Machine (Front /Side Loading)
FEATURES OF INDUSTRIAL WASHER EXTRACTOR
Heavy duty bearing housing Two extra wide roller bearings that are permanently lubricated for trouble free operation In addition, two high quality seals provide four times the sealing power to isolate the bearings from water and chemicals.
Tuned suspension Tuned suspension systems that absorbs even severe out of balance load vibrations. Strategically placed center of gravity and mass weight placement aid in controlling movement and results in 90% reduction of force transferred to floor.
Auto chemical dispenser A five compartment dispenser is mounted at the side of the machine at a convenient height and flushes automatically through powerful jets as and when supply signaled by the computer.
Technical Specifications
| MODEL | CAPACITY dry weight per charge (1:10) | CYLINDER SIZE
VOLUME |
WASH MOTOR
EXTRACT MOTOR |
CYLINDER SPEEDS | LOADING DOOR OPENING | WATER CONNECTION
CONSUMPTION |
DRAIN | HEATING | DIMENSIONS W x D x H |
NET WT/ SIZE: W x D x H |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WASH | EXTRACT | STEAM CONN.
STEAM CONSUMP. |
ELECTRIC LOAD | |||||||||
| LX-XSS 30 LX-XSE 30 |
30 Kg | Ø 900 x 500
318 Ltrs |
0.75 KW
2.2 KW |
33 RPM | 200 RPM | Ø 500 | Ø25 (1″ BSP)
400 Ltrs/cycle |
Ø 65 | LXS 30
Ø15 (0.5″ BSP) 30 Kg/Cycle |
LXE 30
12-18 KW |
1050 x 1200 x 1600 | 750 Kg / 870 Kg 1350 x 1500 x 1900 |
| LX-XSS 60 LX-XSE 60 |
60 Kg | Ø 1100 x 650
617 Ltrs |
2.2 KW
3.75 KW |
33 RPM | 200 RPM | Ø 650 | Ø38 (1.5″ BSP)
800 Ltrs/cycle |
Ø 65 | LXS 60
Ø15 (0.5″ BSP) 60 Kg/Cycle |
LXE 60
18-24 KW |
1300 x 1450 x 1800 | 910 Kg / 1060 Kg 1600 x 1750 x 2100 |
| LX-XSS 120 | 120 Kg | Ø 1350 x 850
1216 Ltrs |
3.75 KW
7.5 KW |
26 RPM | 160 RPM | Ø 800 | Ø50 (2″ BSP)
1600 Ltrs/cycle |
Ø 65 2Nos |
LXS 120
Ø25 (1″ BSP) 120 Kg/Cycle |
– | 1550 x 1900 x 2000 | 1460 Kg / 1710 Kg 1850 x 2200 x 2300 |
